Product Description
Hollyseal® PVC foam tapes are made of ultra-low density (80±20kg/m3) very soft closed cell PVC foam with self-adhesive pressure-sensitive adhesive on one side, which provides excellent sealing of air, water, light, etc., gap filling and cushioning of structural components at different compression levels. In addition, the density, hardness, and compression rebound of the foam can be adjusted to provide performance in a variety of applications. It is suitable for various applications such as automotive sheet metal damping and sealing, water tank sealing, HVAC sealing, door and window weather stripping, electrical and electronic damping and sealing, power battery sealing and cushioning, die-cutting gaskets, etc. Dustproof, waterproof, damping, cushioning, sound insulation, heat insulation, etc.
The main types of PVC foam we produce, they are:

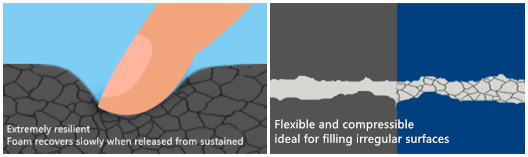

● Fast recovery foam - material recovers immediately after compression
● Slow recovery PVC foam - ideal for filling irregular surfaces

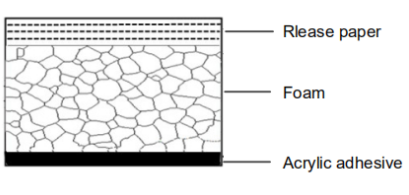

Product Structure
Product Features
●Flame retardant grade can be customized
●Extremely low density, slow rebound
●Excellent shock absorption and sound insulation performance
●Highly conformable to curves and irregular shapes
●Good resistance to dilute acids and alkalis
●Excellent UV resistance and weather resistance
●30% compression to seal against light, dust and water
●Release paper on non-adhesive surface reduces dimensional changes during application
Product Applications
1.HVAC sealing
2.Pneumatic system sealing
3.Electronic equipment sealing
4.Rooftop air conditioning insulation
5.Body vibration damping
6.Sound insulation partition
7.Electrical appliance sealing
Specification Description
| Material | Polyvinyl chloride foam | |
| Color | Black,Grey,White,Brown,Special colors can be customized | |
| Thickness | in | 0.063，0.079，0.126，0.157，0.189，0.197，0.236， 0.248，0.315，0.374，0.5，0.625，0.75，1 |
| mm | 1.6，2，3.2，4，4.8，5，6，6.3，8，9.5，12.7，16，19， 25.4 | |
| Length | ft | 16.4，20，25，32.8，50 |
| m | 5，6.1，7.6，10，15.2 | |
Technical Information
| Density | 95±10kg/m3 |
| Tensile strength | ≥100kPa |
| 30% permanent compression deformation | ≤10% |
| Hardness（Shore 00） | 12° |
| Elongation at break | ≥120% |
| Flame retardant | UL94 (HBF/HF-1/V0) FMVSS 302 The above series can be customized |
Note: We can provide ultra-low, medium-low and high-density PVC foam tapes.
