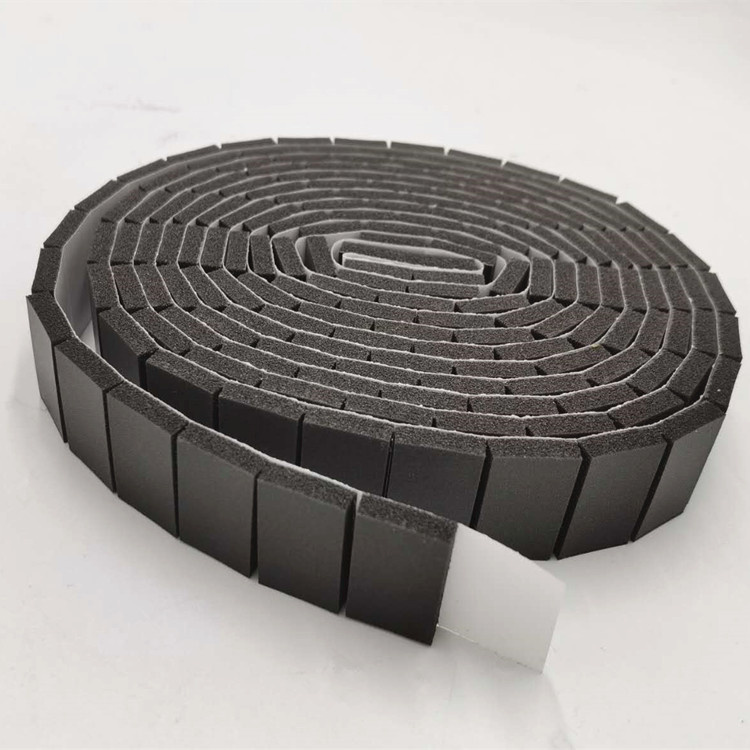

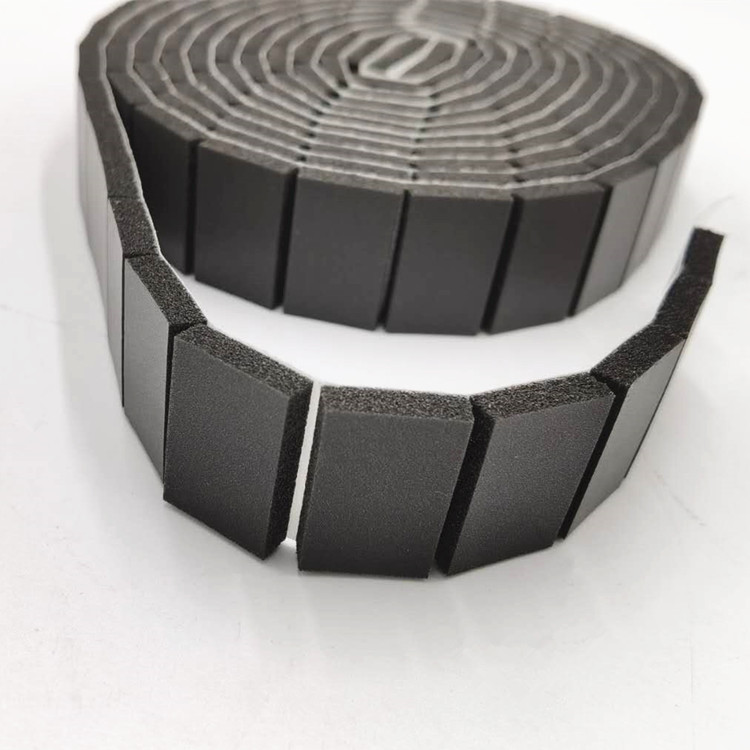

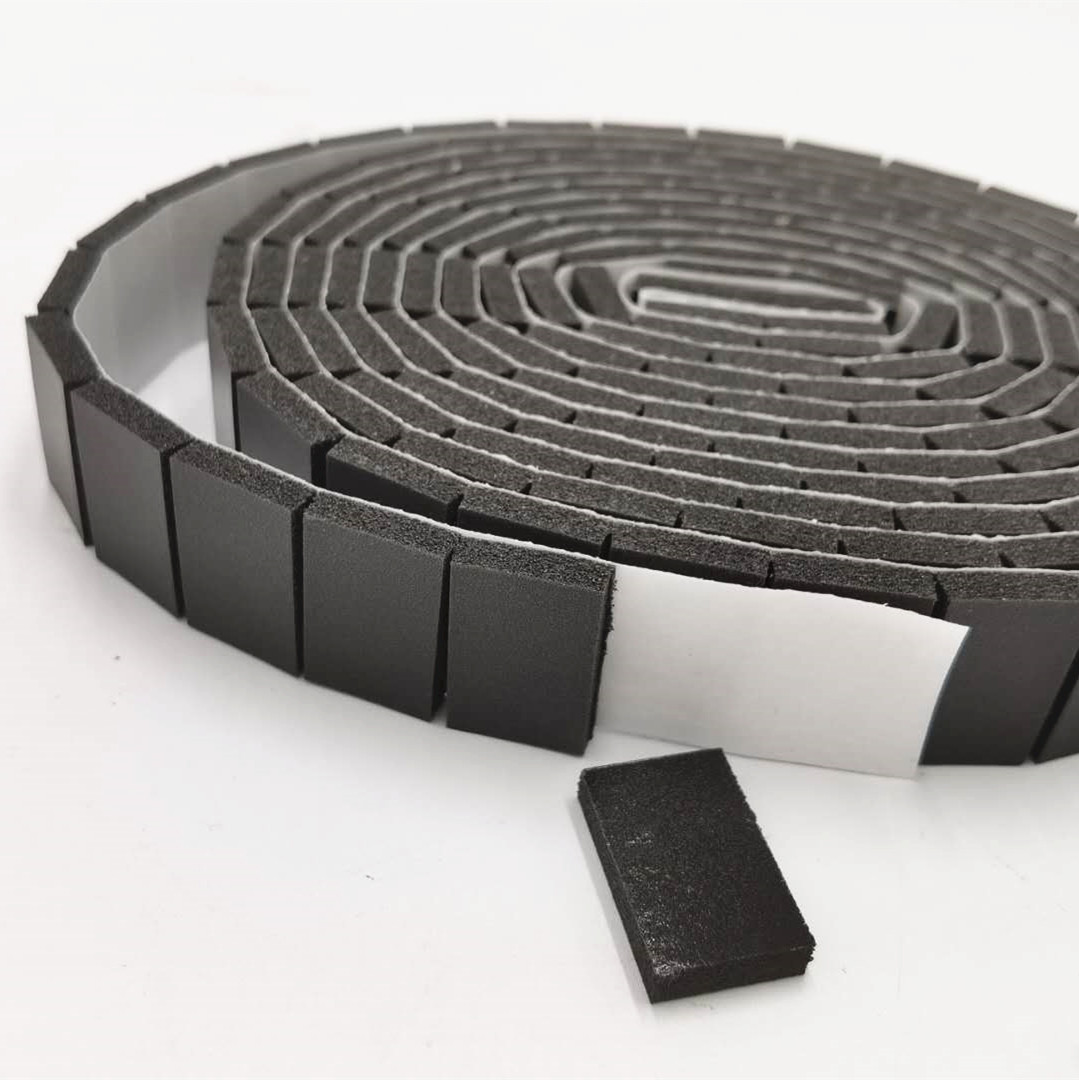

Product Description
Hollyseal® PVC glass gasket tape has a high strength pressure sensitive adhesive on one side that provides an excellent seal against air, water, light and other substances and fills gaps. It is a good combination of flexibility, compliance and abrasion resistance, and has excellent weather and chemical resistance. It can also be adjusted for density (350±50 kg/m³), thickness (1-25 mm), softness, and compression rebound to provide performance for a variety of applications. The tape is specifically designed to be used as a primary or secondary seal for a variety of glazing systems. In the window glazing market, the performance of Hollyseal® foam makes it a good choice for glazing applications.
Product Features
1. The foam can play an excellent role in sealing water, dust, light and other substances after 10% compression
2. The foam has high Shore hardness, strong internal structure and excellent tear resistance
3. Excellent shock absorption and sound insulation performance
4. Excellent anti-UV performance and weather resistance
5. Good thermal insulation performance
6. Good resistance to acid and alkali
7. Both sides of the foam are smooth and flat and can be used on most glass parts
8. Flame retardant grade can be customized (UL-94-V-0 class/ BS476:part7:1997 classⅠ)
Product Application
1.Used in various architectural window glazing systems, curtain wall glazing systems
2. Heating and ventilation duct systems
3. Automotive and transportation industry
Specification Description
| Material | Polyvinyl chloride foam | |
| Color | Black,Grey,White,Brown | |
| Thickness | in | 0.063，0.079，0.126，0.157，0.189，0.197，0.236， 0.248，0.315，0.374，0.5，0.625，0.75，1 |
| mm | 1.6，2，3.2，4，4.8，5，6，6.3，8，9.5，12.7，16，19， 25.4 | |
| Length | ft | 16.4，20，25，32.8，50，100 |
| m | 5，6.1，7.6，10，15.2，30.5 | |
Technical Information
| Density | 350±50 kg/m3 |
| Hardness（Shore 00） | 80±10° |
| 180° Peel strength | 0.82N/mm |
| 30% permanent compression deformation | ≤7% |
| Elongation at break | ≥70% |
| Tensile strength | ≥800kPa |
| Flame retardant | UL94 (HBF/HF-1/V-0 ） FMVSS 302 The above series can be customized |
