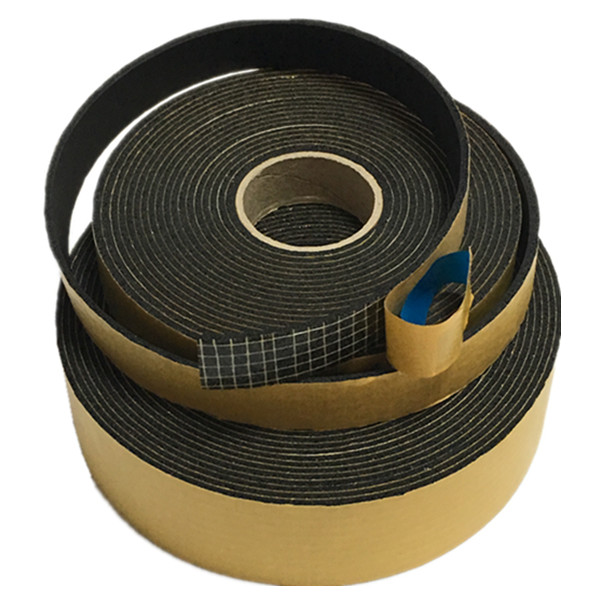

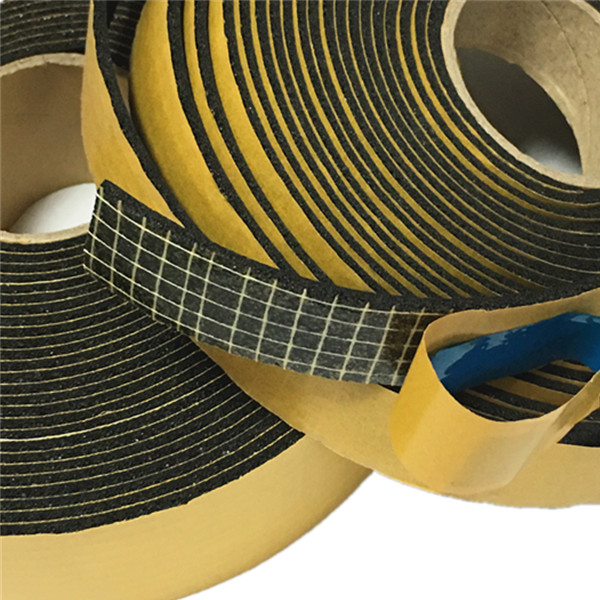

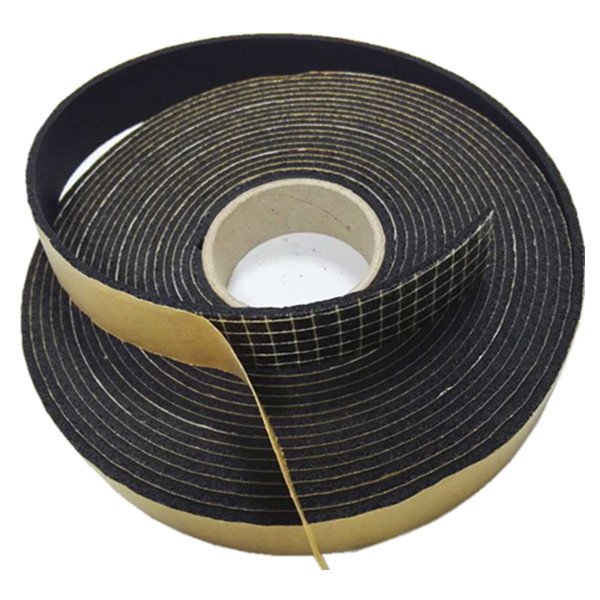

NBR foam sealing strip with mesh

Product introduction

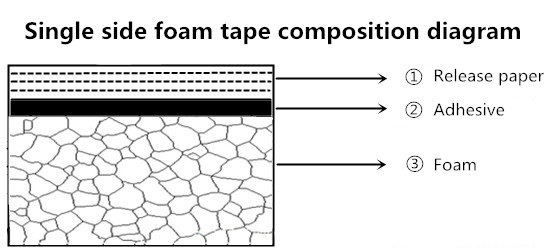

The NBR-PVC single sided foam tape offers good initial adhesion and good resistance to humidity, mild acids, oil and grease for gasketing, sealing baffling cushioning and insulation

The NBR-PVC single sided foam tape is easy to cut and joint for a good style building and construction, automotive in air handling and acoustic engineering electrical and electronic, furniture and glass, advertisement and many other industries with peel strength and excellent holding power. Customers' requests are available.

Product feature

1.Strong adhesion, excellent shock absorption and crack resistance, sound absorption, and thermal insulation；

2.Good isolation and buffering performance, no water absorption, good shockproof effect；

3.Excellent fire resistance, heat and flame retardant effect, good mechanical strength and electrical insulation；

4.High tensile strength, good elongation, good adaptability to base expansion or cracking deformation；

5.Good stain resistance, easy to clean, special UV treatment, corrosion resistance；

Product application

It is used for flexible connection of building, household, decoration and so on, and is also the best choice of window glass assembly, which is loved by people in developed countries in Europe and America.

Specification Sheet for：CR150
Material Properties	Unit		Test Method		Physical standard value		Measured value
Thick	mm		ASTM D3574		1-45		45
Width	mm		ASTM D3574		1000-1500		1000
Density	Kg/m3		ASTM D3574		160±30		165
Hardness	shore c		JIS K6767		15-20		18
Tensile Strength	Kpa		ASTM D412		＞800		900
Heat shrinkage rate	%		ISO:2011 Method B		＜10		8.6
Elongation	%		ASTM D412		＞120		134
Tear strength	KN/M		ASTM D624		＞2.5		3
Water absorption rate	%		ASTM D1056		＜5		3.7
25%Compression  rate load	Kpa		ASTM D1056		45±20		46
Ozone aging resistance	Excellent
Shock absorption performance	Excellent
