Product introduction

PVC foam tape is primarily a foam compression sealant.The foam is predominantly closed celled. An acrylic pressure sensitive adhesive is coated on one side, and the product has a paper release liner on the other non-adhesive face.It require 30% compression to create a water seal.It is ideal for applications such as appliance seals, wall panels, die-cut,gaskets, and window and door weatherstripping.

We manufacture finished goods in main types of PVC foam, which are:

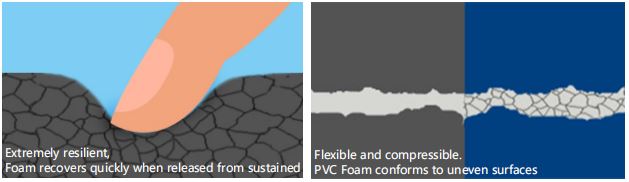

●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces

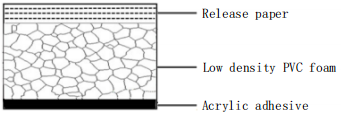

Product structural

Product feature

● Excellent UV resistance and weather resistance

● Closed-cell foam which seals out air, dust and moisture

● Conform to curves and different shapes

● Good compression and adhesive

● Good vibration dampening and cushioning

● Thicknesses from 0.5 mm up to 25 mm

● Flame resistant product which meets FMVSS 302

● Dimension stability

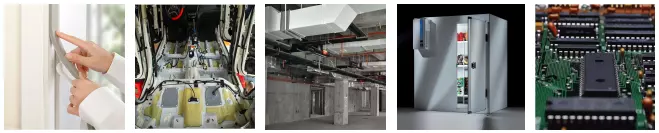

Product application

● Access doors & HVAC seals

● Appliance seals

● Die-cut gaskets

● Cold room seals

● Window and door weatherstripping

● Electronic equipment

● Engine hatch covers

● Automotive application

Technical information

Density	130±20kg/m3
Tensile Strength	≥190kPa
30% Compression Set	≤4%
Hardness（Shore 00）	12±5°
Elongation	≥210%
Flammability	UL-94 HF-1/HBF   FMVSS 302       (V0 can be customized)
