Medium Density Closed Cell Waterproof 1.6mm PVC Foam Water Tank Sealant Tape

Medium density PVC foam tape is an excellent choice for exterior weather sealing and also performs well in acoustic or vibration damping solutions. Available with adhesive on one side or both sides depending on customer needs.

资料下载

Product Description

Hollyseal®PVC foam tape is made of medium rigid closed-cell PVC foam with a density of 250±30kg/m3 and self-adhesive pressure-sensitive adhesive on both sides. The foam tape provides excellent sealing of air, water, light and other substances, gap filling and shock absorption for the installation of structural components at different compression levels. In addition, the density, hardness, and compression rebound of the foam can be adjusted to provide performance in a variety of applications. It is suitable for various applications such as automotive sheet metal damping and sealing, water tank sealing, HVAC sealing, door and window weather stripping, electrical and electronic damping and sealing, power battery sealing and cushioning, die-cutting gaskets, etc. Dustproof, waterproof, damping, cushioning, sound insulation, heat insulation, etc.




The main types of PVC foam we produce, they are:

● Fast recovery foam - material recovers immediately after compression

● Slow recovery PVC foam - ideal for filling irregular surfaces



Product Features

●Sealing water, dust and air at 10% compression

●Perfect combination of flexibility, compliance and high strength abrasion resistance

●Excellent UV resistance and weather resistance

Conforms to curves and irregular shapes

Excellent vibration and sound dampening properties

●Customizable flame retardant rating (UL-94 V0; BS476:Part7:1997 Class1)

●Dimensionally stable under compression

●Provides insulating properties

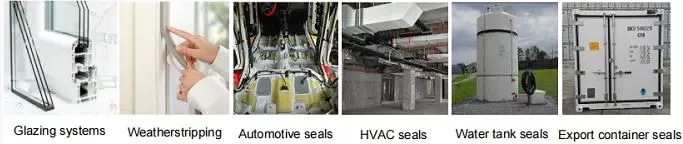

Product Application

1.Export container sealing

2.Electronic equipment cushioning

3.Ventilation duct sealing

4.HVAC sealing

5. Car body shock absorption

6.Electrical appliances sealing

7.Door and window sealing

8.Water tank sealing



Technical Information

Density
250±30kg/m3
Hardness(Shore 00)
55±7°
Compression strength
≥25kPa
 30% Permanent compression deformation
≤7%
Elongation at break≥110%
Tensile strength

≥400kPa

                             Flame retardant

UL94 (HBF/HF-1/V-0)

  FMVSS 302

      The above series can be customized

Note: We can provide super low, medium low and high density PVC foam tapes.
